Trailed sprayer – Berthoud Tracker
Why choose the Berthoud Tracker trailed sprayer?

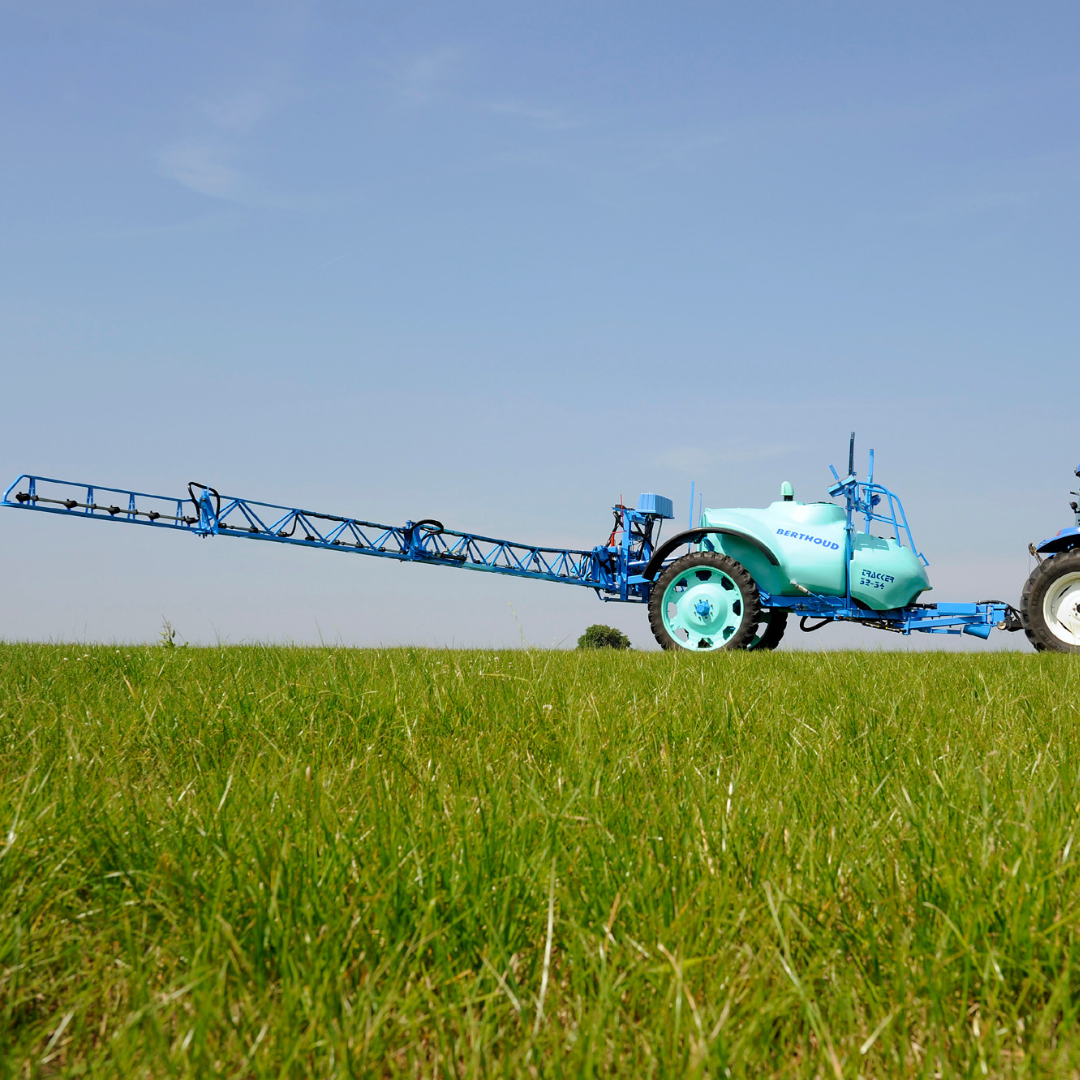

Trailed sprayer – The Berthoud Tracker is one of the most popular Berthoud trailed models. The sprayer is designed for work on uneven terrain, as the special Actiflex suspension compensates for bumps and furrows in the field while protecting the booms from heavy vibrations.
It incorporates a series of innovations created and patented by Berthoud. The Tracker model is available with a 3200-liter tank capacity, and boom lengths range from 24 to 42 meters.
.png)

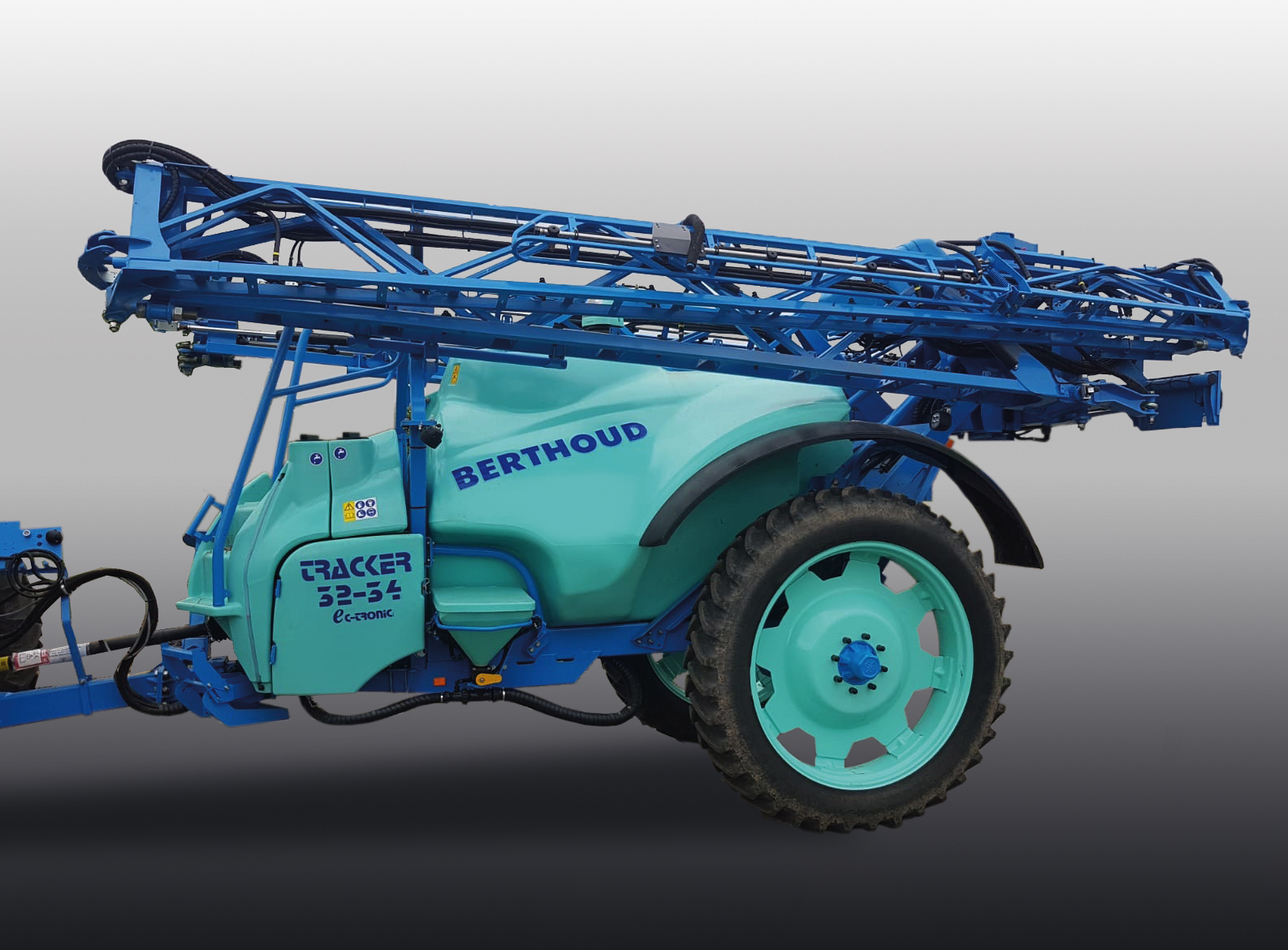

Suspension
The Actiflex suspension is a patent developed by the Berthoud engineering team. It is the only suspension on the market with an "offset" spring to achieve variable stiffness based on weight and axle forces. It constantly adapts to the load for suspension that is always optimal.
The Actiflex suspension allows the sprayer to move smoothly over uneven terrain and extends its service life.
All sprayer configurations in the range feature:
- Metal chassis with ultra-resistant protective paint

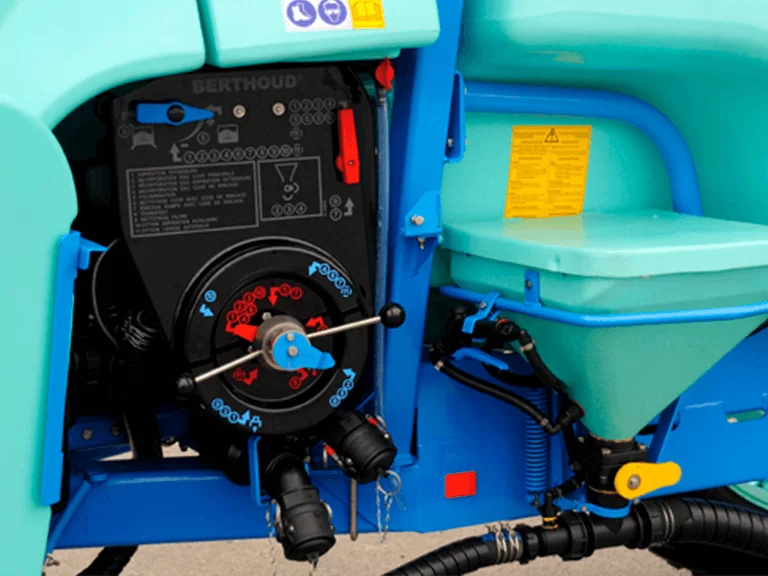

- Spray control panel Berglogic
- Dualmatic a system that reduces residual solutions in the system
- Side cover to protect the control panel as an additional option in the Berthoud Tracker trailed sprayer model configuration
- 2-compartment centrifugal pump with a capacity of 550l at an operating pressure of 3 bar
- Pump VOLUX with a flow rate of 240 l/min or 320 l/min
- Pump BP with a flow rate of 280 l/min

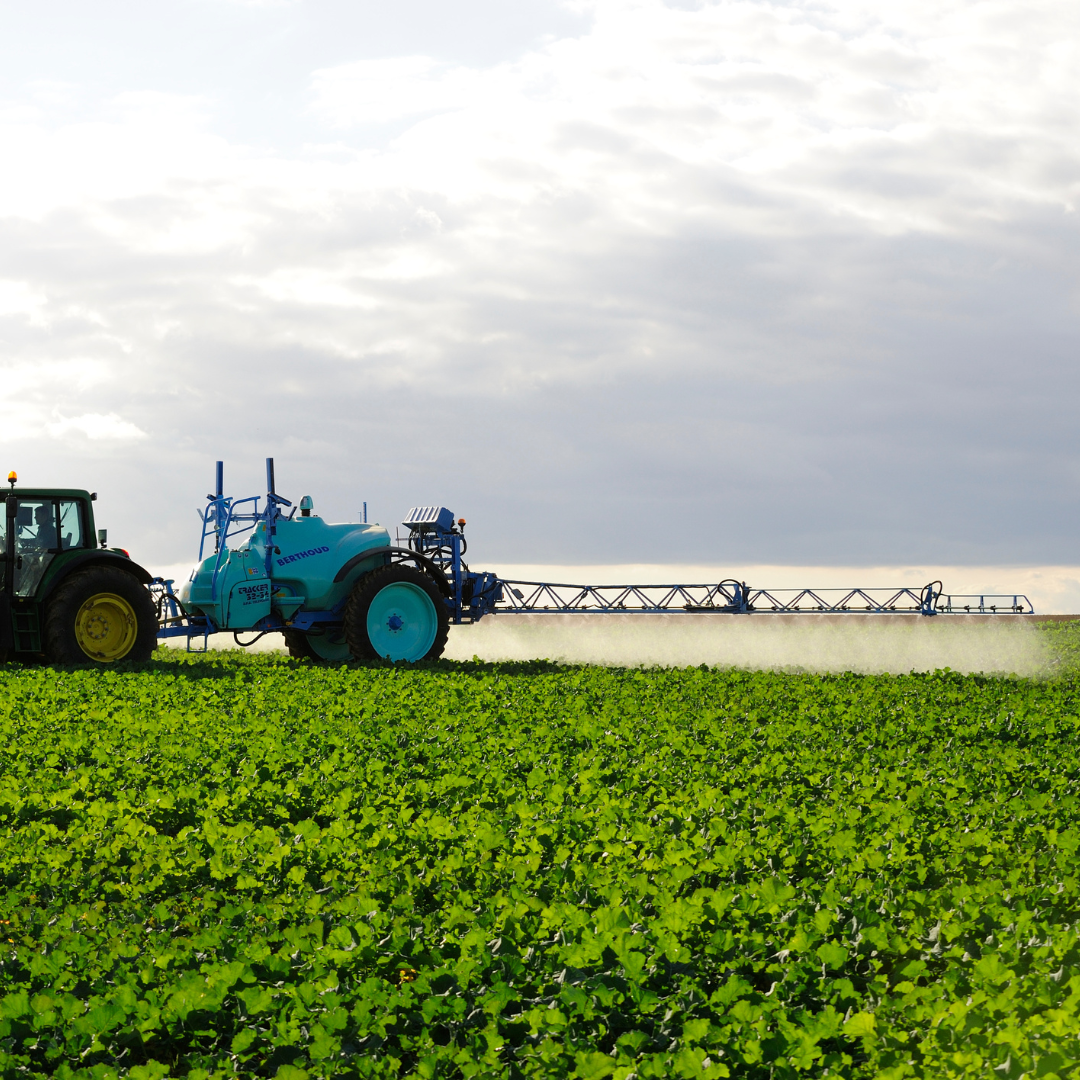

Berthoud Tracker booms
The booms equipped on the Tracker model feature:
Axial
- Lengths from 18 to 32 meters
- Central pivot axial suspension with springs and shock absorbers
- Independent outer boom folding for specific lengths
- Slope correction and variable geometry for specific lengths
- Automatic boom height control
.png)
Stability, management, and equipment integration

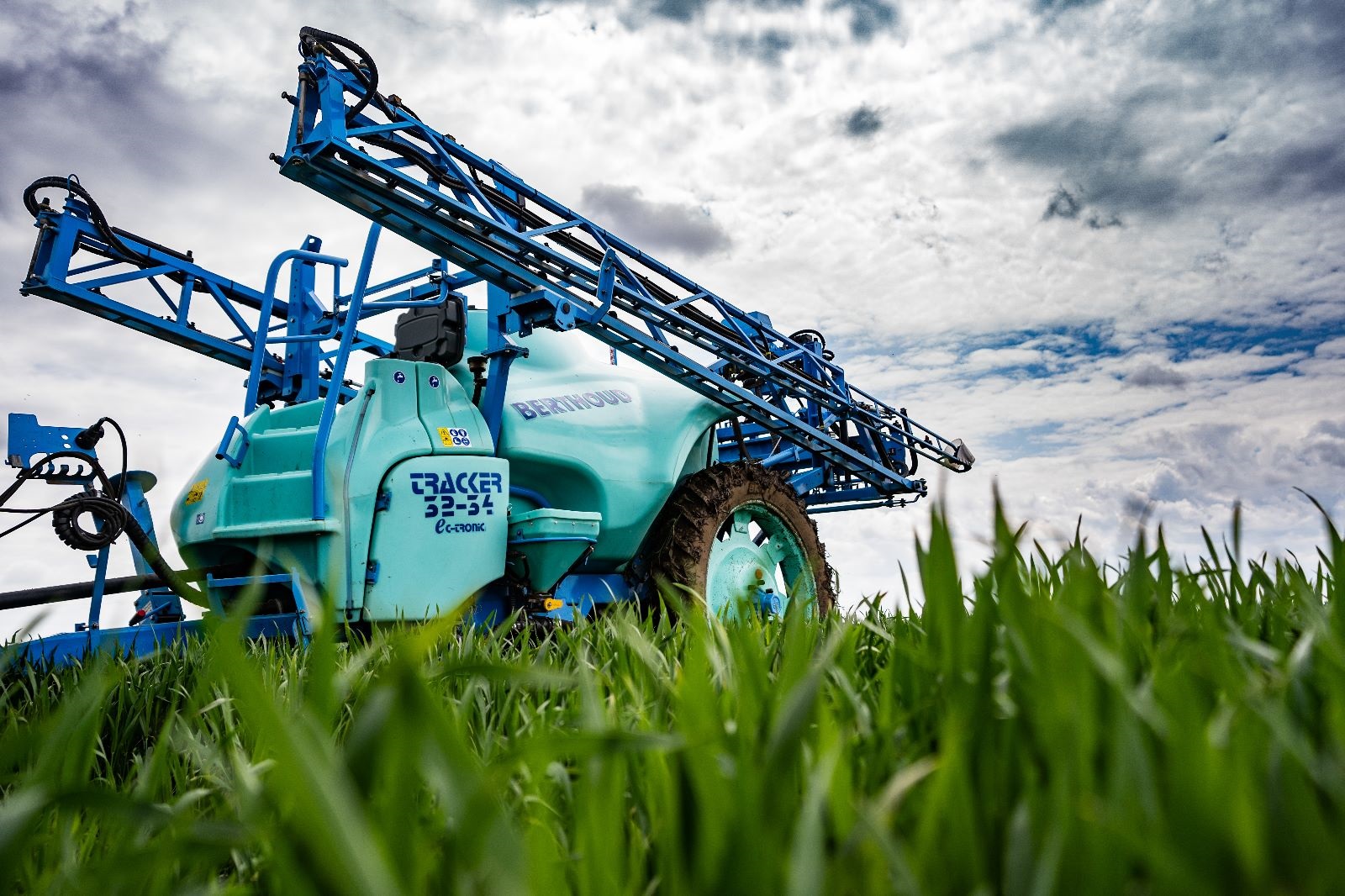

- The chassis consists of two large, wide side rails and has a relatively low center of gravity to optimize the stability of the spraying system on slopes.
- ACTIFLEX suspension on the "S" version with springs and shock absorbers, ensuring efficient loading.
- High-density polyethylene main tank with a capacity of 3200 liters + 5%.
- Diamond-shaped tank that optimizes tank drainage
- Suction valve for easy main tank drainage
- 330-liter rinse tank
- A tracking drawbar is available as an option, coupling to the tractor's lift arms to minimize crop damage and ensure legendary stability on flat ground, slopes, and inclines
ACTIFLEX suspension
- The only spring suspension on the market that achieves variable stiffness based on load and axle tension
- Fully mechanical suspension
- Constant load adaptation
- Requires minimal maintenance and offers real comfort and quality of work!
- Exclusive to BERTHOUD for optimal comfort
Technical Specifications
With over 120 years in the market, French manufacturer Berthoud is among the leaders in producing high-tech sprayers. Founded in 1895, the company's portfolio includes a wide selection of self-propelled, trailed, and mounted sprayers with broad application in agriculture.
Recognizing the need for continuous development and improvement, Berthoud annually invests in its research and development team to create and patent innovative technologies, which are subsequently integrated into new machines. This ensures the French manufacturer continuously enhances its product range by implementing the latest industry innovations.
All Berthoud sprayers comply with established international standards for integrated agricultural methods, while also being designed to minimize impact on nature and cultivated crops.
“Our primary goal is to help farmers cultivate high-quality crops. The growing population and simultaneously limited agricultural land necessitate working with higher efficiency for better results,” explains the Berthoud team.
